ENHG-U2P
 |

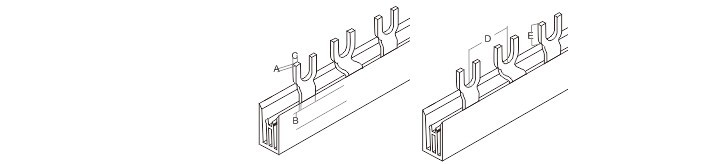

| 規(guī)格 | 型號(hào) | A | B | C | D | E | F | 橫截面積 | 參考電流 |
| HG | HG-U2P | 1.2 | 5 | 17.8 | 12 | 6 | 12 | 6mm² | 32A |
| HG | HG-U2P | 1.2 | 7 | 17.8 | 12 | 6 | 12 | 8mm² | 50A |
| HG | HG-U2P | 1.5 | 7 | 17.8 | 12 | 6 | 12 | 10mm² | 63A |
| HG | HG-U2P | 1.5 | 9 | 17.8 | 12 | 6 | 12 | 13mm² | 80A |
| HG | HG-U2P | 1.8 | 9 | 17.8 | 12 | 6 | 12 | 16mm² | 100A |
| HG | HG-U2P | 2.0 | 10 | 17.8 | 12 | 6 | 12 | 20mm² | 120A |
